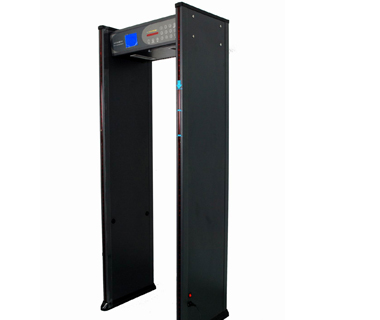

艾崴 100C［测温型］

红外人体测温，真人发音报警，提示体温异常，有效防止规模性疾病传染；

多区位设计：有6,8,12,16,18,24,33等区位设计（需定制）

内置电源：不怕停电，或者临时户外不插电使用，可连续使用2-8小时（需定制）

操作方式：面板数字键操作；红外线遥控操作；电脑远程联网操作（定制）；豪华超大超亮5.7寸 LCD显示，中英文双语菜单；

探测区域：根据人体基本结构将探测门划分为多个相互重叠的探测区域，采用网状探测方式和单一频率激励技术，消除探测区域内的弱区和盲区，灵敏度更高，性能更稳定。

报警方式：声光报警，音调快慢可区分金属物大小，多种报警音量模式适用于不同场合的选择，通过门柱左右超亮LED报警灯可准确显示人体相应高度藏匿的违禁物品。测温报警：真人发音报警，提示体温异常；

区域灵敏度：最高灵敏度可以探测到回形针大小的金属含量物体，可在0-255级灵敏度之间自行调节、可根据探测要求把各区位调节器调到适当的灵敏度，同时可对整体灵敏度进行另外调节。预先设定金属物品重量、体积、大小、部位、排除钥匙、首饰、皮带扣等误报警。

产品工艺：采用PVC产品合成材料及特种工艺制造，防水防潮，外形豪华美观更适合大型高级场所使用。

智能统计：智能化的客流量和报警计数功能，能够自动统计人员通过数和报警次数。

抗干扰能力强：采用数字、模拟和左右平衡技术，防止误报警和漏报，大大提高抗干扰能力。

安全保护：采用双重密码保护，只允许授权人员操作，可根据需要对密码进行修改，并提供密码丢失恢复设置，安全性更高。参数设置自动存储，无须采用不间断电源保护，更安全更方便。

电磁辐射：符合EMC电磁辐射标准，采用弱磁场技术，对心脏起搏器佩戴者、孕妇、软盘、胶卷、录像带等无害。

安装调试：本设备金属探测门采用一体化设计，仅需20分钟即可安装或拆卸完毕，随机配备安装和调试操作说明书。

电源：AC90V-250V 50HZ-60HZ
功率：<35W
外型尺寸：2200mm（高）´800mm（宽）´500mm（深）
通道尺寸：2010mm（高）´700mm（宽）´500mm（深）
温度范围：-32-380℃
距离比：13：1
基本精确度：±1.5%
超出量程提示：LCD 将显示 “”xxxx”
红外线测温分辩率：0.1℃/℉
响应时间：小于1秒
相对湿度：10-95%RH（不结露，环境测温<30℃)
工作环境：0°C— 45°C

Highlights:
U Infrared Temperature Measuring Belt Metal Security: Organic Infrared temperature checking is integrated with metal security inspection and passes through the metal security check gate.
U Infrared human body temperature measurement, real person pronunciation alarm, suggesting abnormal body temperature, effective prevention of scale disease infection;
U Multi-location design: There are 6, 8, 12, 16, 18, 24, 33 location designs(to be customized)
U Built-in power supply: available for 2-8 hours(custom required) without power outages or temporary outdoor unplugged
U waterproof: outdoor can be used on rainy days; (Custom required)
Operation:
Panel digital key operation; Infrared remote control; Computer remote network operation(custom);
Luxury oversized super bright 5.7 inch LCD display, bilingual menu in Chinese and English;
Detection area:
According to the basic structure of the human body, the detection doors are divided into multiple overlapping detection areas. The mesh detection method and the single frequency excitation technology are used to eliminate the weak and blind areas in the detection area, and the sensitivity is higher and the performance is more stable.
Alarm mode:
Sound and light alarm, the speed of tone can distinguish the size of metal objects, a variety of alarm volume mode suitable for different occasions of choice, through the door post left and right ultra-bright LED alarm lights can accurately display the body's corresponding height hiding prohibited items. Temperature measurement alarm: real person pronunciation alarm, suggesting abnormal body temperature;
Regional sensitivity:
The highest sensitivity can detect a metal-content object of the size of a paper clip. It can adjust itself between 0-255 levels of sensitivity, and can adjust each area regulator to the appropriate sensitivity according to the detection requirements. At the same time, the overall sensitivity can be adjusted separately. Preset metal items weight, volume, size, location, excluding keys, jewelry, belt buckle and other false alarm.
Product process:
Using PVC products synthetic materials and special technology manufacturing, waterproof and moisture, luxury and beautiful shape is more suitable for use in large advanced places.
Smart statistics:
The intelligent passenger flow and alarm counting function can automatically count the number of people passing through and the alarm number.
Strong anti-interference ability:
Digital, simulation and left and right balance technology are adopted to prevent false alarms and omissions, and greatly improve anti-interference capabilities.
Security:
With dual password protection, only authorized personnel are allowed to operate. Passwords can be modified as needed, and password loss recovery settings are provided, and security is higher. Parameter settings are automatically stored without the need for uninterrupted power supply protection, which is safer and more convenient.
Electromagnetic radiation:
In accordance with the EMC electromagnetic radiation standard, the use of weak magnetic field technology is not harmful to pacemaker wearers, pregnant women, floppy disks, films, video tapes, etc..
Install and debug:
The equipment metal detection door adopts an integrated design, only 20 minutes can be installed or disassembled, randomly equipped with installation and debugging operation instructions.
Technical parameters
Source: AC90V-250V50HZ-60HZ power rate: & lt; 35W
Appearance Size: 2200mm(H) <UNK> 800mm(W) <UNK> 500MM(D) Channel Size: 2010mm(H) <UNK> 700MM(W) <UNK> 500MM(D)
Temperature range: -32-380 °C Distance ratio: 13:1
Basic accuracy: ± 1.5 % beyond range hint: LCD will display "" XXXX "
Infrared temperature resolution: 0.1 °C / °F response time: less than 1 second
Relative humidity: 10-95 % RH(no condensation, environmental temperature measurement & lt; 30 °C) Working environment: 0 °C -45 °C
