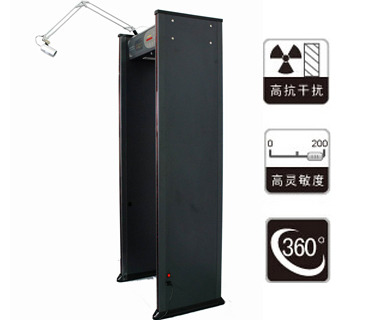

艾崴 AN-100E［摄像拍照］

全球首创：H0I安检之家
拍照功能：报警式抓拍或通过式抓拍H0I安检之家
录象功能:可设置不间断录象或者动态式录象(定制)H0I安检之家
存储功能：无须外接设备,所有抓拍照片或录象直接存储于安检门内;H0I安检之家
实时查看：无须外接设备,直接通过本机彩色LCD显示器实时查看抓拍照片或录象;(也可通过电脑或其他设备查看,视使用者的习惯)H0I安检之家
全球联网：通过INTERNET异地查看拍照或报警资料可配合公安防护或缉凶(须定制)H0I安检之家
操作方式：面板数字键操作；红外线遥控操作；电脑远程联                              网操作；豪华7寸彩色LCD显示，中英文双语兼电脑图形式菜单；H0I安检之家
探测区域：根据人体基本结构将探测门划分为多个相互重叠的探测区域，采用网状探测方式和单一频率激励技术,消除探测区域内的弱区和盲区，灵敏度更高，性能更稳定。H0I安检之家
报警方式：声光报警，音调快慢可区分金属物大小，多种报警音量模式适用于不同场合的选择，通过门柱左右前后的4条超亮LED报警灯可准确显示人体相应高度藏匿的违禁物品。H0I安检之家
探测灵敏度：最高灵敏度可以探测到回形针大小的金属含量物体，可在0-255级灵敏度之间自行调节、可根据探测要求把各区位调节器调到适当的灵敏度，同时可对整体灵敏度进行调节。也可以预先设定金属物品重量、体积、大小、部位，以排除钥匙、首饰、皮带扣等的误报警。H0I安检之家
产品工艺：采用PVC产品合成材料及特种工艺制造，防水防潮，外形豪华美观更适合大型高级场所使用。H0I安检之家
智能统计：智能化的客流量和报警计数功能，能够自动统计人员通过数和报警次数。H0I安检之家
抗干扰能力强：采用数字、模拟和左右平衡技术，防止误报警和漏报，大大提高抗干扰能力。H0I安检之家
安全保护：采用双重密码保护，只允许授权人员操作，可根据需要对密码进行修改，并提供密码丢失恢复设置，安全性更高。参数设置自动存储，无须采用不间断电源保护，更安全更方便。机器根据不同用户需求,预先设置多达10种安检等级参数,用户无须摸索调节,直接调用,简单方便;H0I安检之家
电磁辐射：符合EMC电磁辐射标准，采用弱磁场技术，对心脏起搏器佩戴者、孕妇、软盘、胶卷、录像带等无害。H0I安检之家
安装调试：804系列金属探测门采用一体化设计，仅需20分钟即可安装或拆卸完毕，随机配备安装和调试操作说明书。H0I安检之家

技术参数H0I安检之家
电源：AC90V-250V  50HZ-60HZH0I安检之家
功率：<40W H0I安检之家
外型尺寸：2200mm（高）´800mm（宽）´500mm（深）H0I安检之家
通道尺寸：2010mm（高）´700mm（宽）´500mm（深）H0I安检之家
外观颜色：黑，白，深蓝等颜色可供选择H0I安检之家
整机重量：约80kgH0I安检之家
工作环境：-20°C—+45°CH0I安检之家
符合标准：GB15210-2003《通过式金属探测门通用技术规范》国家标准 H0I安检之家

四、超值服务：H0I安检之家

1、1个月包换、5年保修、终身维护。H0I安检之家
2、即日起，凡在我公司购买所有产品，凭收据、发票对老客户实行依旧换新及产品升级服务H0I安检之家
 H0I安检之家

Global initiative:H0I安检之家

U Photo Capture Function: Alarm Capture or Pass CaptureH0I安检之家

U Video Function: Continuous Video or Dynamic Video can be set (customizedH0I安检之家

U storage function: without external equipment, all snapshots or videos are stored directly in the security door;H0I安检之家

U Real-time viewing: without external equipment, the captured photos or videos can be viewed directly through the local color LCD monitor in real time; (also can be viewed by computer or other devices, depending on the user's habitsH0I安检之家

U Global Networking: Viewing photos or alarm data from different places through INTERNET can cooperate with public security protection or homicide hunting (customized)H0I安检之家

Operation modes: panel digital key operation; infrared remote control operation; computer remote networking operation; luxury 7 inch color LCD display, bilingual and computer graphics menu;H0I安检之家

Detection area: According to the basic structure of human body, the detection gate is divided into several overlapping detection areas.H0I安检之家

The detection area is eliminated by using network detection mode and single frequency excitation technology.H0I安检之家

In the weak and blind areas, the sensitivity is higher and the performance is more stable.H0I安检之家

Alarm mode: acousto-optic alarm, tone speed can distinguish the size of metal objects. Various alarm volume modes are suitable for different occasions. Four ultra-bright LED alarm lights around the door post can accurately display the prohibited items hidden at the corresponding height of the human body.H0I安检之家

Detection sensitivity: The highest sensitivity can detect the metal content object of the size of the clip needle. It can self-adjust between 0-255 levels of sensitivity. It can adjust the location regulator to the appropriate sensitivity according to the detection requirements. At the same time, it can adjust the overall sensitivity. It can also pre-set the weight, volume, size and location of metal objects to eliminate false alarms of keys, jewelry, belt buckles, etc.H0I安检之家

Product process: PVC product synthetic materials and special process manufacturing, waterproof and moisture-proof, luxurious and beautiful appearance is more suitable for large-scale high-level places to use.H0I安检之家

Intelligent statistics: Intelligent passenger flow and alarm counting function, can automatically count the number of passes and alarm times.H0I安检之家

Strong anti-jamming ability: using digital, analog and left-right balance technology to prevent false alarm and false alarm, greatly improving anti-jamming ability.H0I安检之家

Security protection: Double password protection is adopted, only authorized personnel are allowed to operate, password can be modified according to need, and password loss recovery settings are provided, with higher security. The parameter setting can be stored automatically without uninterruptible power supply protection, which is more safe and convenient. According to the needs of different users, the machine sets up up up to 10 kinds of security level parameters in advance. The user does not need to explore and adjust, and calls directly, which is simple and convenient.H0I安检之家

Electromagnetic radiation: Complying with EMC electromagnetic radiation standard, using weak magnetic field technology, it is harmless to the wearer of cardiac pacemaker, pregnant women, floppy disk, film, video tape, etc.H0I安检之家

Installation and debugging: 804 series metal detection doors adopt integrated design, which can be installed or disassembled in only 20 minutes. They are randomly equipped with installation and debugging operation instructions.H0I安检之家

 technical parameterH0I安检之家

Power supply: AC90V-250V 50HZ-60HZH0I安检之家

Power: <40W H0I安检之家

Size: 2200mm (high) 800mm (wide) 500mm (deep)H0I安检之家

 Channel size: 2010 mm (high) 700 mm (wide) 500 mm (deep)H0I安检之家

 Appearance colours: black, white, dark blue and other colours are availableH0I安检之家

 Whole machine weight: about 80 kgH0I安检之家

 Working environment: - 20 C -+45 CH0I安检之家

Standard: GB15210-2003 National Standard of General Technical Specification for Passing Metal Detection GateH0I安检之家
IV. Value-added services:H0I安检之家

1, 1 month replacement, 5-year warranty and lifelong maintenance.H0I安检之家

2. From now on, all products purchased in our company will be renewed and upgraded according to receipts and invoices.H0I安检之家
